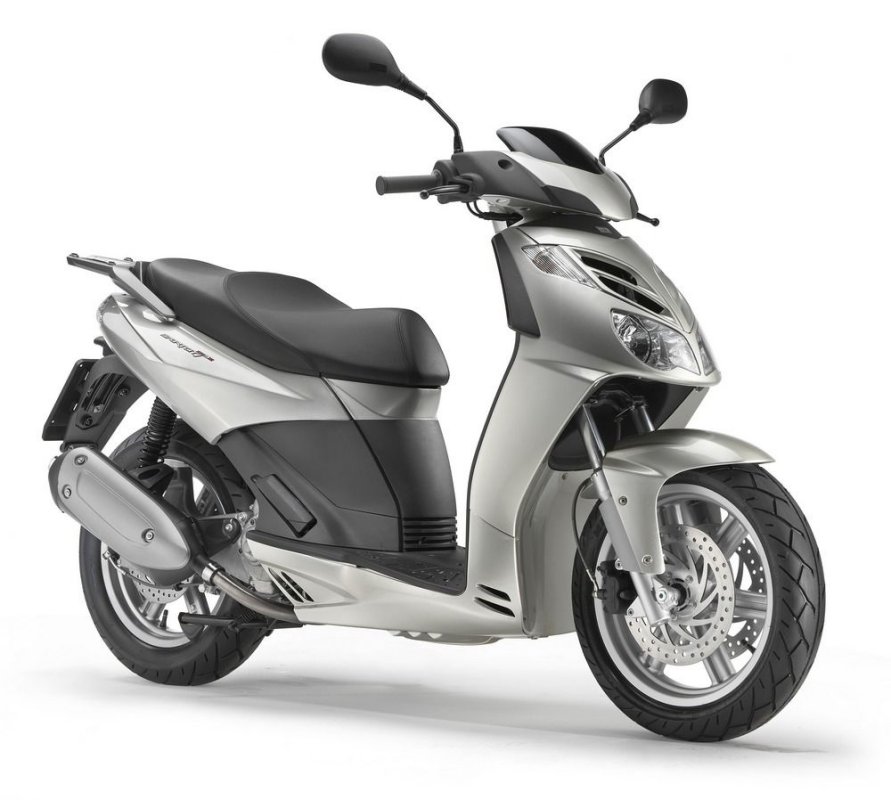

SportCity Cube 125, 2009
SportCity Cube 125, 2009
Are driving 0 · Subscribed 0 · Discussions 0

Specifications

General information
Year
2009
Engine and transmission
Engine type
1-cylinder, 4T
Power
15 HP
Cooling system
Liquid
Transmission type,final drive
Belt
Displacement
124.8 ccm
Valves per cylinder
4
Fuel system
Injection
Gearbox
Automatic
Clutch
Automatic centrifugal dry clutch
Lubrication system
Wet sump. Forced circulation with mechanical pump
Compression
11.5:1
Ignition
Electronic inductive discharge ignition with variable advance
Chassis, suspension, brakes
Front brakes
Double disc
Rear brakes
One disc
Front tyre
120/70-15
Rear tyre
130/80-15
Front suspension
Hydraulic telescopic fork with 35 mm stanchions. Wheel travel 100 mm
Rear suspension
Engine unit acting as swingarm. Double hydraulic shock absorber with adjustable spring preload. Wheel travel 80 mm
Front brakes diameter
260 mm
Rear brakes diameter
220 mm
Physical measures and capacities
Overall length
1.985 mm
Overall width
890 mm
Fuel capacity
9 litres
Wheelbase
1.36 mm
Reserve fuel capacity
1.5 litres
Seat height
815 mm
Other specifications
Color options
Grey, Black, Silver, Blue
